ESP LTD EC-01 FT CBS

ESP LTD EC-01 FT CBS: a specification-based review

The ESP LTD EC-01 FT CBS is a single-pickup electric guitar with a mahogany body, a quilted maple top, and a fixed bridge. Its listed price is $1,158. The specifications describe a straightforward control layout and a shorter 24.75-inch scale, with a single Seymour Duncan Custom 14 humbucker mounted at the bridge. No customer reviews are available, so this assessment is based only on the supplied product information. It cannot establish how the guitar feels in hand, sounds through an amplifier, or performs over time.

The model is listed as available since October 2025. The item number is 608606, and the sales unit is one piece. The finish information appears in two forms: the short specification says Charcoal, while the detailed description calls it Matte Charcoal Burst. The latter gives a more specific finish name, but the supplied data does not explain whether the two labels refer to different options or simply describe the same finish at different levels of detail.

Body, neck, and fingerboard

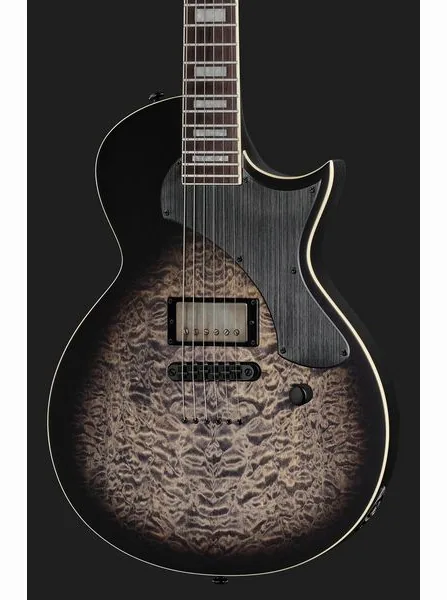

The body is mahogany, paired with a quilted maple top. The neck is also mahogany and is set into the body rather than bolted on. These details identify the construction materials and neck joint, but they do not by themselves establish weight, resonance, sustain, or tonal character. Those qualities depend on the actual instrument and setup, neither of which can be judged from the specifications alone.

The neck profile is described as Thin U. This is a shape designation, not a measurement of the neck's depth at particular fret positions, so players who need exact dimensions should seek a full neck-dimension chart or handle the instrument before buying. The ebony fingerboard has a stated radius of 350 mm, equivalent to about 13.78 inches. That relatively broad radius figure is useful for comparing specifications, but it does not predict comfort for every playing style.

There are 22 extra-jumbo frets. The larger fret designation tells buyers what type of fret is fitted, but the supplied details do not give fret material, fret height, or crown width. As a result, there is no basis here for claims about bending feel, wear life, or factory fretwork. The nut is 43 mm wide, or about 1.69 inches, a concrete dimension that may help when comparing necks. Individual preference still determines whether that width suits a player.

Scale length and hardware

The scale length is 629 mm, or 24.75 inches. This is shorter than a 25.5-inch scale, and gives a clear point of comparison when assessing string feel alongside other guitars. Actual tension also depends on string gauge and tuning. The listed strings are D'Addario XL110, but the data does not specify whether those are installed at the factory or merely included in the product specification.

The bridge is a Tune-O-Matic design with strings passing through the body. There is no tremolo system. This makes the bridge configuration mechanically simpler than a floating tremolo setup, although the information provided does not establish tuning stability or ease of setup on an individual guitar. LTD locking tuning machines are specified, along with black hardware. The listing does not provide details such as bridge material, tuning-machine ratio, or adjustment range.

Pickup and controls

The guitar has one Seymour Duncan Custom 14 humbucker at the bridge and one volume control. There is no neck pickup or separate tone control listed. That layout keeps the stated electronics simple, with the bridge pickup as the only specified sound source. The product data does not identify a pickup selector, coil-splitting function, or other switching options, so none should be assumed.

A single bridge humbucker can be a useful fit for players seeking a focused, minimal control arrangement, but the pickup's actual output and tonal response cannot be confirmed from its name alone. No audio samples, electronics diagram, or independent listening test were supplied. Buyers who rely on a wider range of pickup positions or onboard tone adjustment should note that those features are not listed here.

What the specifications establish

The EC-01 FT CBS has a defined set of practical specifications: a mahogany body and neck, quilted maple top, ebony fingerboard, 22 extra-jumbo frets, 24.75-inch scale, bridge humbucker, and string-through Tune-O-Matic bridge. Its listed price is $1,158, and neither a case nor a gig bag is included. That last point matters when comparing the total cost of ownership, since separate protection may be needed for transport and storage.

There is not enough evidence to rate the guitar's sound, playability, build consistency, or value against competing models. The available information supports a feature-based assessment, not a firsthand verdict. Before purchase, confirm the exact finish, included accessories, and current availability with the seller, and try the neck and pickup response if those are central to your decision.
