ESP Edwards Arrow 1H ABK

Technical overview

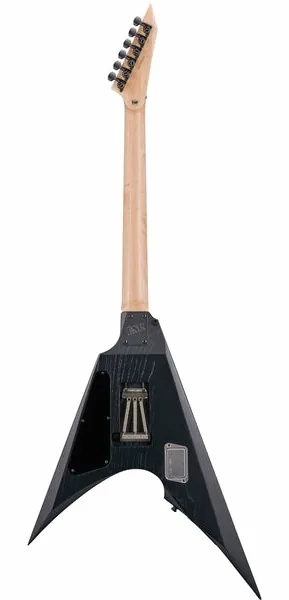

The ESP Edwards Arrow 1H ABK is a V-style electric guitar with a single active humbucker, a Floyd Rose tremolo system, and a bolt-on maple neck. Its listed price is 1790, with no currency specified in the supplied information. The model is made in Japan and comes with a case. No customer reviews are available, so this assessment is based solely on the published specifications.

The body is ash, finished in Alternative Black with black hardware. The specifications list no separate top. The V-shaped body gives the instrument a distinct outline, while the satin black finish keeps its visual treatment restrained. No body dimensions or weight are provided, so those details cannot be evaluated from the available data.

Neck, fingerboard, and scale

The neck is a three-piece maple construction attached with bolts. Its fingerboard is rosewood, with white binding and TUSK inlays. The fingerboard radius is 305 mm, or 12 inches, and its 24 stainless steel Extra Jumbo frets provide the basic fret layout described in the specifications. These details establish the materials and fret format, but do not indicate the neck profile, fretboard edge treatment, or factory setup.

The 648 mm scale length is also listed as 25.5 inches. This is a full-length scale, and the specified nut width is 42 mm. The nut is an R2 locking type, intended to work as part of the locking tremolo setup. The supplied string gauge is.009 to.042. The data does not state the tuning used for setup or whether a different string set is recommended.

Pickup and controls

ESP equips the Arrow 1H ABK with one Fishman Fluence Modern Ceramic humbucker. The pickup is active, and the guitar has one volume control with a push-pull function that selects Fishman Voice 2. That gives the control a defined secondary role, although the available specifications do not describe the precise tonal difference between the two voice settings. There is no listed pickup selector or separate tone control, consistent with the single-pickup configuration.

The active pickup means the electronics require power, but the supplied information does not specify the battery type, battery location, or expected battery life. It also does not provide output measurements or wiring details. Those omissions limit any more specific prediction about level, frequency response, or performance with particular amplifiers.

Tremolo and tuning hardware

The tremolo is a Floyd Rose FRT-2000, paired with an R2 locking nut. The guitar also uses GOTOH SG360-07 MG-T locking machine heads. Together, these are the key hardware details for players considering a locking vibrato arrangement. The specifications identify the components, but do not state how the tremolo is set up, its range of movement, or the procedure for changing strings.

There are 24 stainless steel Extra Jumbo frets, and the supplied string gauge is.009 to.042. Those measurements are useful when comparing the model with other guitars, but they do not establish the action, intonation, or fret condition of an individual instrument. A setup inspection remains important, particularly on a guitar with a locking nut and floating tremolo system.

What the specifications establish

• Body: Ash, with an Alternative Black satin finish and black hardware.
• Neck: Three-piece maple construction with a bolt-on joint.
• Fingerboard: Rosewood, white binding, TUSK inlays, and a 305 mm radius.
• Electronics: One active Fishman Fluence Modern Ceramic humbucker and a push-pull volume control for Voice 2.
• Hardware: Floyd Rose FRT-2000 tremolo, R2 locking nut, and GOTOH locking machine heads.
• Included: A case. No gig bag is listed.

Buying considerations

The Arrow 1H ABK's specification is focused: a single active humbucker, a 25.5-inch scale, 24 stainless steel frets, and a locking tremolo system. Buyers should weigh those features against their preferred pickup layout and willingness to use a locking setup. The stated price is 1790, but the currency and regional pricing context are not provided, so direct value comparisons would require local pricing.

The guitar is listed as item number 648640 and sold as one piece. Its Japanese origin and included case are confirmed in the supplied data. No customer feedback is available, and the specifications do not establish playability, sound quality, build consistency, or long-term reliability. For a purchase decision, those points should be checked on the specific instrument rather than assumed from its parts list.
